Salad Spinner Disassembly

The salad spinner cord broke.
09221101
You can see the problem…
09221102
There’s a plastic two eared nut on the underside of the top.
09221103
I had to drill out the plastic plugs that hid the screws.
09221104
And removed the screws.
09221105

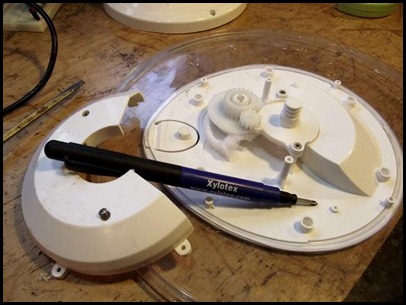

Then more screws to get at the mechanism.
09221106
The gears. The small gear functions as a ratchet.
09221107

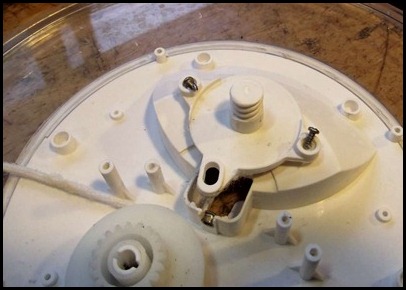

It slides in that slot. Notice all the fuzz from the frayed cord.
09221108
The spindle is removed.
09221109
The hub contains a flat spring.
09221110The cord has a knot at the end and another knot to keep you from pulling the cord out too far.
09221111
The handle was the only part that I had to destructively disassemble. It was pressed together and seemingly glued.09221112

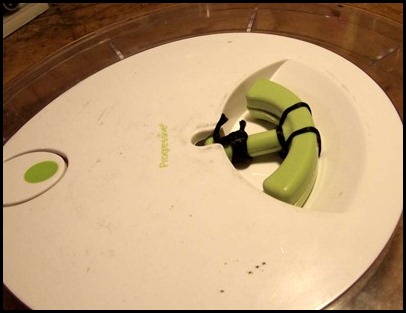

I decided the easiest thing was to lash the two halves together. I might have a friend print up a replacement on his Makerbot or I may just live with it as is.
09221113

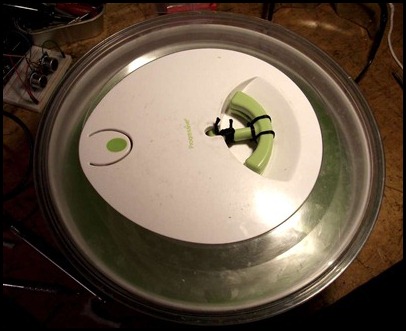

By the faint green blur around the periphery you can see that it functions. The replacement cord is the same that we use for our jewelry. It’s pretty tough and we have a ton of it laying around.
