Quick and Ugly Stroller Repair

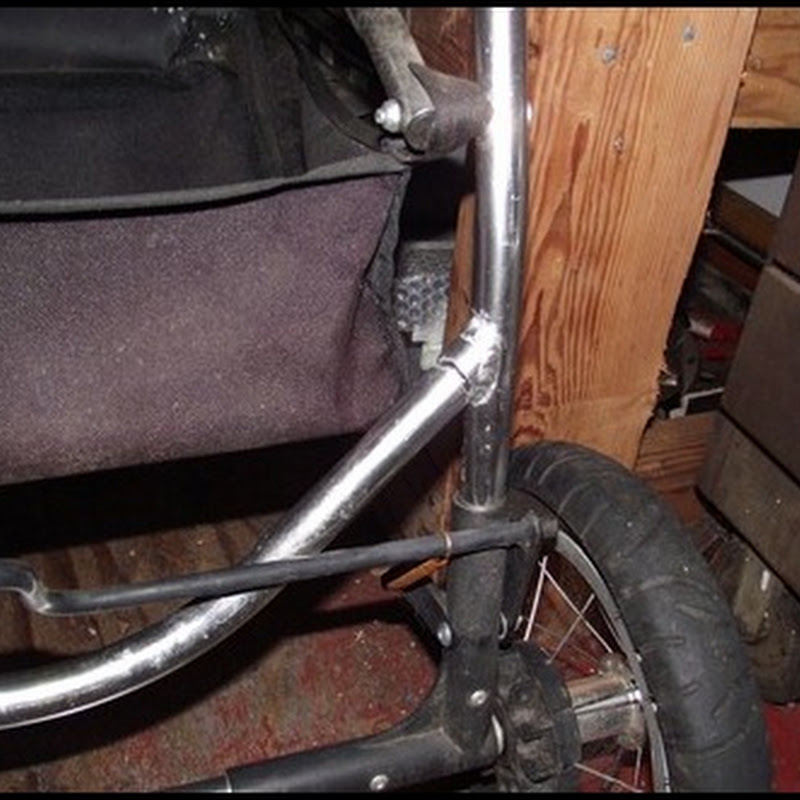

Friends of ours are going to be needing their old abused stroller soon. Unfortunately there’s a stress crack that broke the frame.

It would probably be a better idea to weld it, but I don’t have an easy way of welding aluminum, nor am I a particularly skilled welder.

I sketched out a plate.

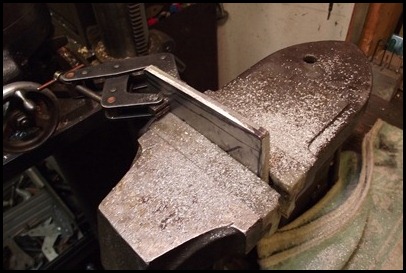

Sawn and about to be copied.

Filing the contours of the two pieces to match.
Almost done…

Two pieces. I figure sandwiching the stroller frame between the pieces will hold it together for at least a couple of years.

Test fit.

Hole locations marked.

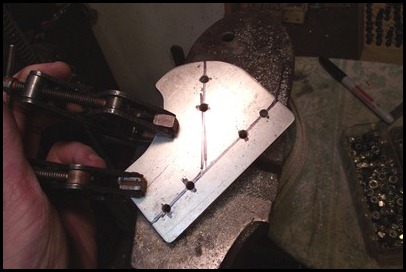

Drilled. Note that I did the holes with the pieces clamped together.

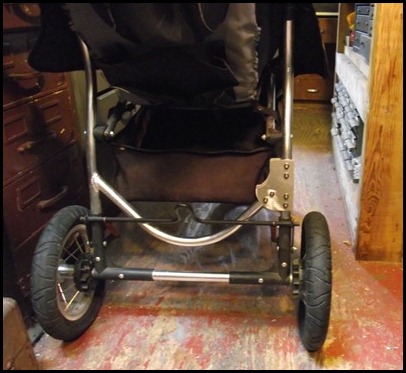

Test fit. I used #10-32 stainless button head cap screws and painted nylon insert lock nuts. It shouldn’t come apart although if these guys could crack the frame…

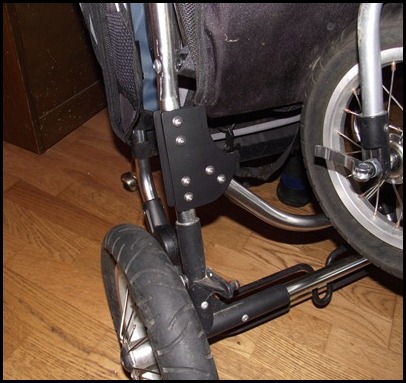

I hit it with some black spray paint so it wouldn’t be as noticeable.
