Keithley 160B Digital Multimeters and Failure.

DSCF1391
I bought 3 Keithley 160B Digital Multimeters at one of the OSU sales last month. They were $5.00 each. Why did I buy all three? Because who knows if they would all work. And because, that’s why. Also they all worked except that none would display amperage…and one other thing.

DSCF1393
When I said they might not work, notices like this on the top of all three are why. They came out of LBCC and were likely abused by students.

DSCF1394
The back has Analog Output. Except it doesn’t.

DSCF1397

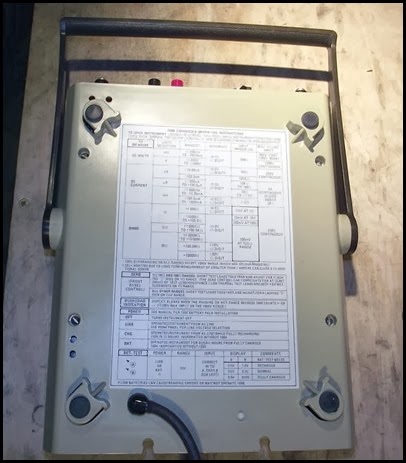

The underside. The cord wraps around the outside of the legs.

DSCF1396
Instructions.

DSCF1398
I opened it up upside down. Don’t do that.

DSCF1399

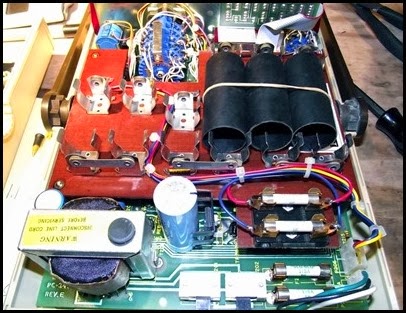

The screws are held with o-rings underneath the 4 brown pillars/risers. I didn’t take any pictures because it’s obvious. The red arrow points to the location of the 3rd, non obvious, fuse. The two obvious fuses are fine.

DSCF1402
The non-obvious fuse.

DSCF1405
The fuse socket.

DSCF1407

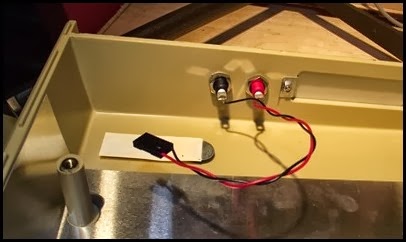

The analog output isn’t hooked up to anything.

DSCF1410
This is the one with the most notes on top. The “LSD BAD” is my own note. As the Least Significant Digit in the display does not work (that one other thing) on this unit.

DSCF1412
The battery pack was present, only without batteries. It will not be used as it requires a slew of NiCad cells.

DSCF1413
Maybe I’ll put it up on Ebay.

DSCF1416
Testing a non-obvious fuse. Open is bad.I bought this multimeter at an OSU sale as well.

DSCF1419DSCF1422DSCF1424
Worlds of circuits…

DSCF1430
On the left, the replacement fuse. I don’t know why it’s a LFMX rather than a LF. The Keithley manual (you can download one from their site and there are other copies eiaser to access as well on the web) states that it’s a Fuse, 3A, Microfuse, part 273003 made by Littelfuse. I bought 3 from Newark. With shipping, they cost more than the multimeters did.

DSCF1431
With fuses installed in all units, I tested the amperage readings. They all work now…except for the one that doesn’t.

DSCF1436
While the 160B has a 3-1/2 digit readout, meaning that it displays 1XXX or XXX as appropriate, the bad Keithley doesn’t display the last digit. Curiously it displays the dot.

DSCF1440
This is what I get for probing carelessly, I blew up all the digits.

DSCF1447

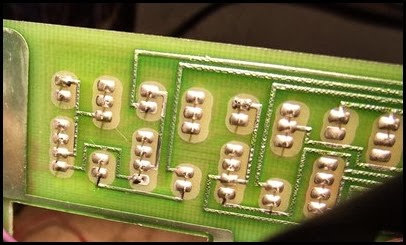

Those are some wrinkled traces (or wrinkled solder mask). The wrinkling is worse on this unit than the others.

DSCF1453
I removed the board…DSCF1454
I had a bunch of identical LED displays, so I desoldered the bad ones and put new ones in.

DSCF1458
Testing…this time with better current limiting.

DSCF1507DSCF1509
I still wasn’t able to get the last digit to light up. So I plugged the display from the bad unit into the board of a good unit. It lit up, sort of. I possibly damaged the new LED digit when soldering, or probing, or it was already bad. But it lit up more than when hooked up to the bad unit’s board. which means that it isn’t the display that’s bad. I didn’t want to hook a good display up to the bad one’s board as there was a possibility it was burning out the digits, and I didn’t want to make things worse.

DSCF1513
I think it’s either the transistor that switches the LED (it’s a multiplexed display) or the input to that transistor. Or a faulty trace. Or black magic. Anyway I’m probably not going to invest more time tracking down the problem. The unit isn’t worth it. I’ll either sell it, trade it, scrap it (it has some nice .1% resistors) or just let it sit in my junk pile. Not sure, I have two others that work fine.
