Timex Sinclair ZX81, My First Home Computer

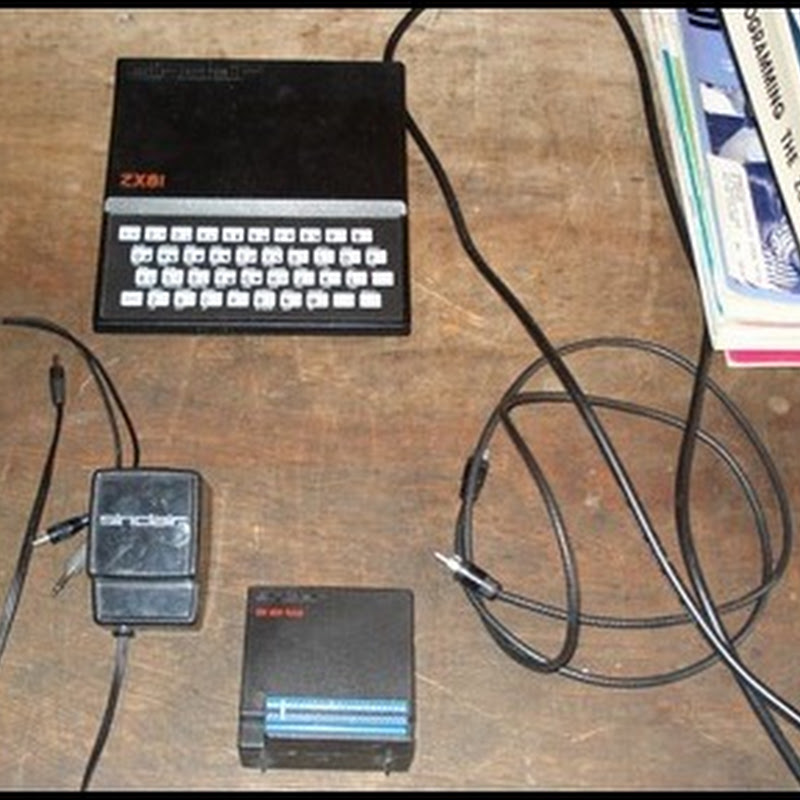

I brought my Timex Sinclair ZX81 back from my visit out East.DSC01221
My dad bought it in 1982, It was $99.95!
DSC01222

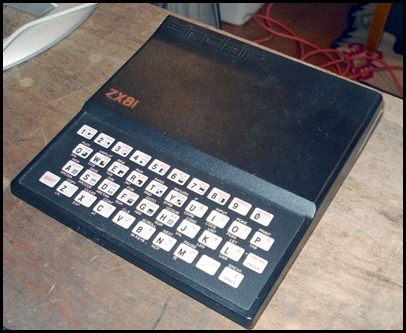

Tiny with a flat membrane keyboard.
DSC01225

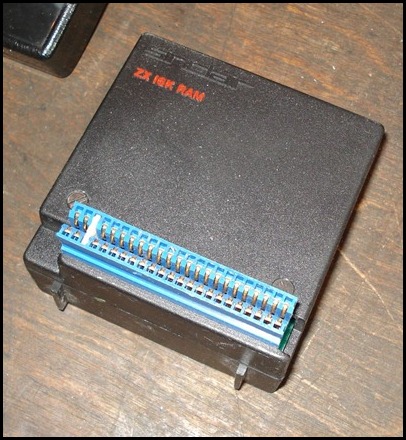

The 16K RAM pack. It has 1K onboard.
DSC01227

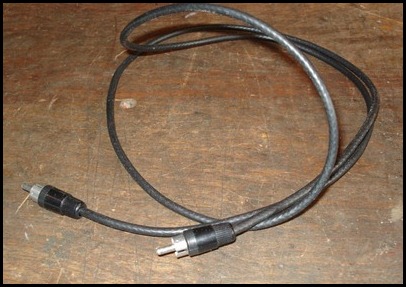

The video cable, not a composite, but a UHF signal.
DSC01228

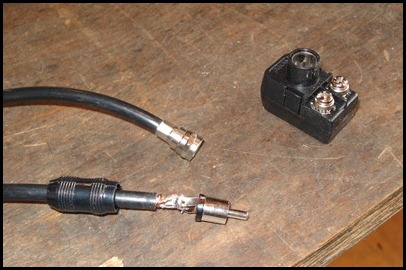

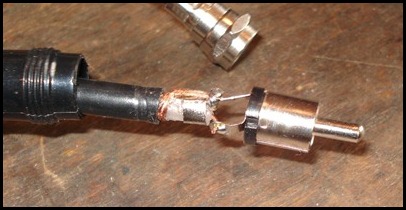

I tried to use the adapter on the right with a cable, but it didn’t work. My EE on call suggested the impedance was wrong. So I soldered up this cable from a coax and an RCA plug.
DSC01229
I think there’s probably a better shielded solution out there.
DSC01231

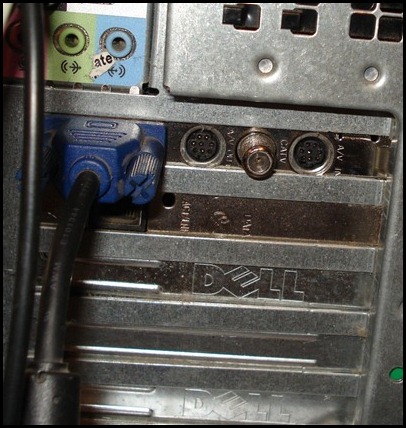

Feeding it into an old ATI All-in-Wonder AGP card in a P4 box through the CATV jack.
screengrab1

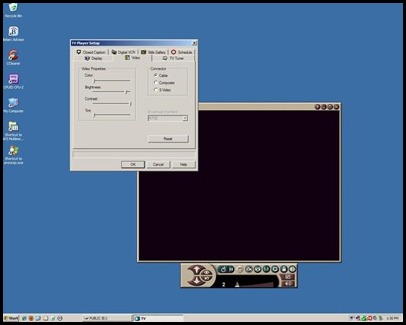

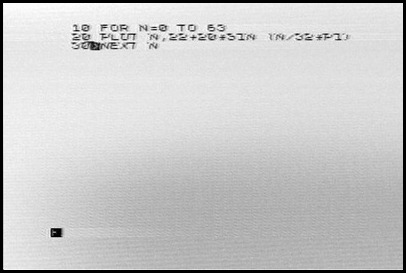

I had to play with the settings, pumping up both brightness and contrast.
screengrab5screengrab4
The ancient ATI software sucks. This actually looked a tiny bit better on screen. I think there’s a lot of noise in my system. But it’s legible. Here are some videos I captured:
DSC01233

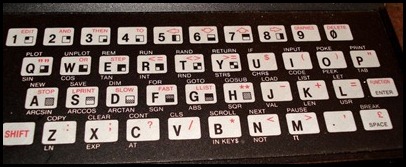

The confusing membrane keyboard. You try and figure it out.
DSC01235

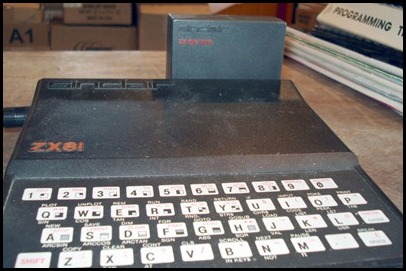

16K Ram pack installed.

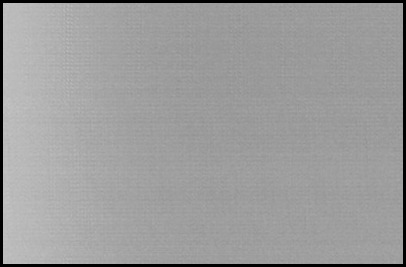

screengrab3
No output at all. Must be bad.
DSC01238

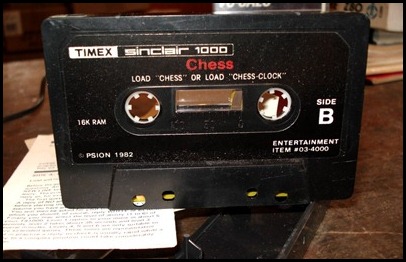

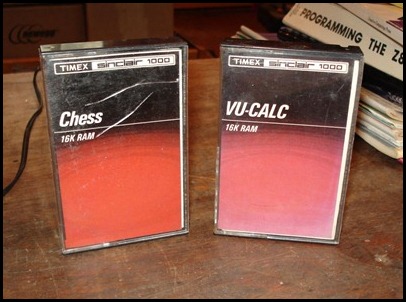

I have some software!
DSC01240
Wrap your head around this.
DSC01241

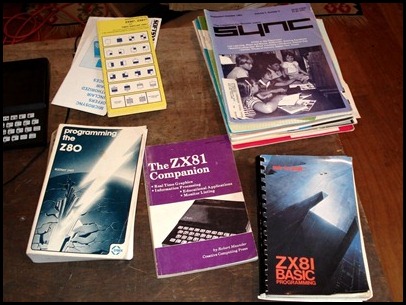

I have reference material. The Z80 book was a birthday gift. I did a lot of PEEKing and POKEing.
DSC01247

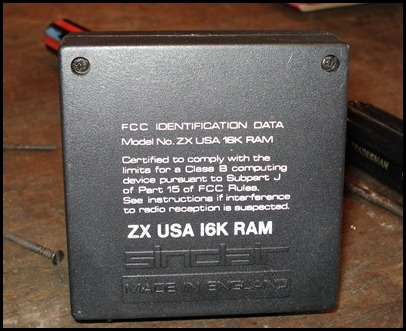

Why not open it up? Two slotted screws on one side, two Phillips on the other.
DSC01248

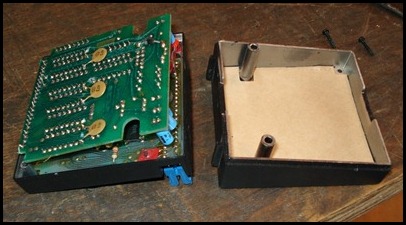

Opened.
DSC01249

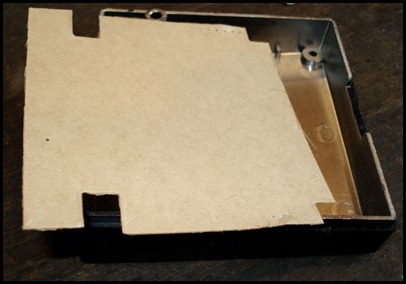

Some insulating card stock.

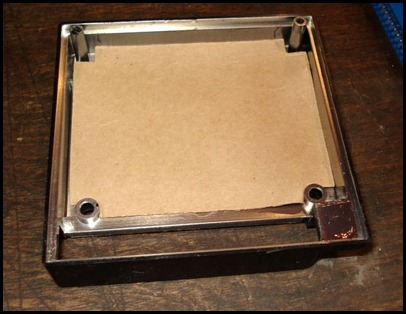

DSC01250
Other half.
DSC01251

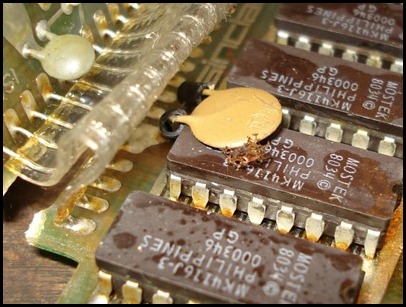

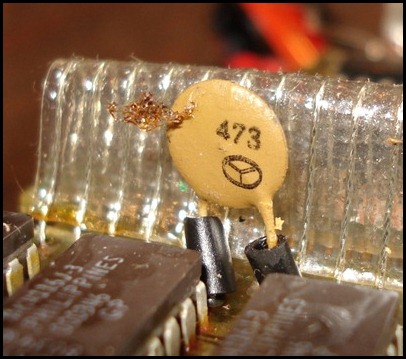

I don’t know what it is. Could just be fluff, but it could be from the capacitor.
DSC01256

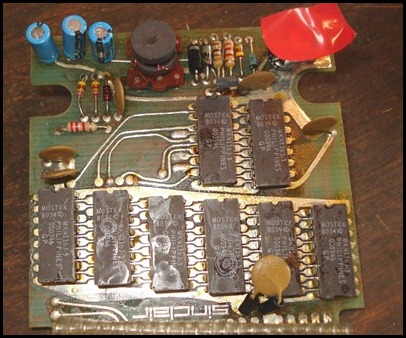

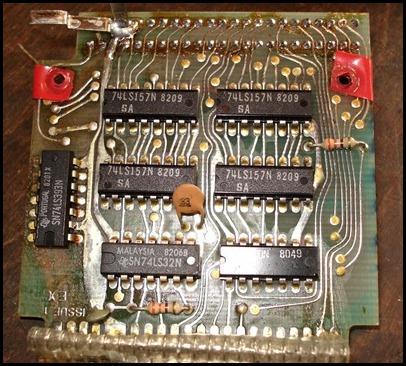

One board.
DSC01257
The other. Connected with a ribbon cable.
DSC01261
That fluff. What is it?
DSC01266

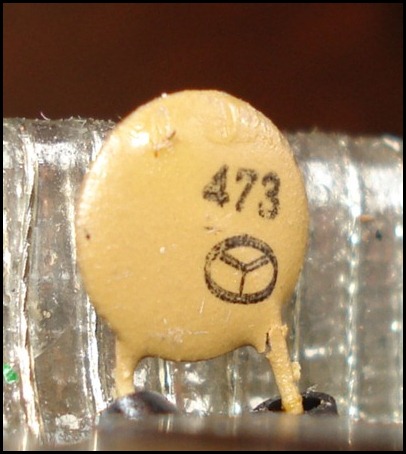

Removed, it may not be anything. But maybe I’ll replace that cap? We’ll see, I want to do a little reading.
DSC01272

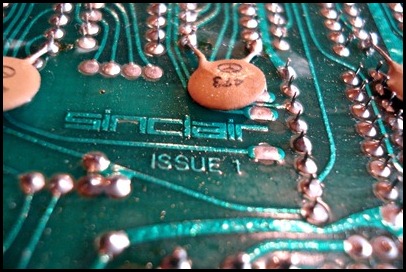

This might be my new desktop wallpaper.
