Replaced the Capacitors on a XFX Geforce 8600 GT

DSC03206
I bought three of these at the computer bonanza yard sale last year. One didn’t work. I threw it in a box and forgot about it. Then I needed a graphics card. They aren’t bad cards for general use. I figured it was worth half an hour and a couple of bucks worth of capacitors* to see if I could get it working.

DSC03207

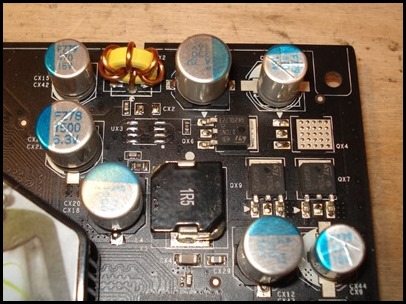

This is why it didn’t work. Exploded FZ brand capacitors. They are known to go bad and many people took advantage of XFX’s lifetime warranty on these cards. I don’t have that option. Notice also that they are through-hole capacitors on a card that could have taken higher quality solid surface mount capacitors (the PCB had both options). Likely a bean counter at XFX saved the company 30 cents, then lost tens of dollars on the warranty.

DSC03208
DSC03209
These FZ caps look ok but I’ll replace them as well.

DSC03210

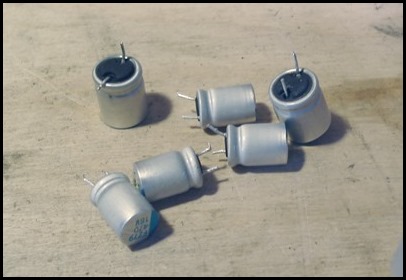

Bye-bye. I did the standard heat, glob some solder on and wiggle method of removal.

DSC03211
I ordered new caps (1000, 1500 and 470 mF, 6.3V for the first two and 16V for the last) from Mouser and had a few already from Jameco. 105 deg. C, low ESR. The black ones are Panasonic.

DSC03212
Caps in place.

DSC03213
Soldered them in. The card works, at least for the last 12 hours it has.



*It always ends up being around $20, because you buy a bunch of other crap at the same time, just because. In my case I ordered extra capacitors and a bunch of Attiny 45 microcontrollers.
