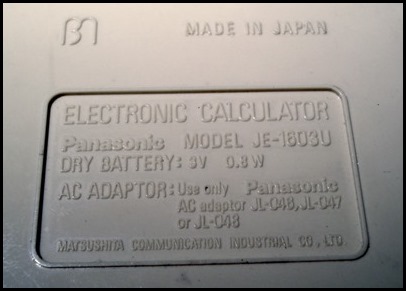

Grandpa Al’s Panasonic JE-1603U Calculator

DSC03773
My in-laws brought us some items that belonged to Felice’s Grandpa Al. He was a great guy. This lovely calculator was probably used for all of his book keeping and such. Unfortunately it didn’t turn on anymore and the battery compartment had crusty deposits.

DSC03774
Removing 4 screws.

DSC03776
Pretty self-explanatory.

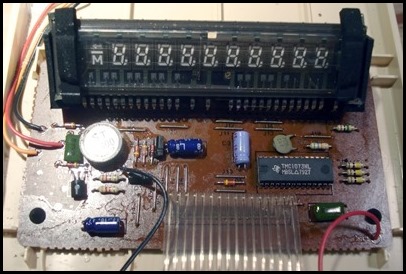

DSC03777
That’s a vacuum fluorescent display.

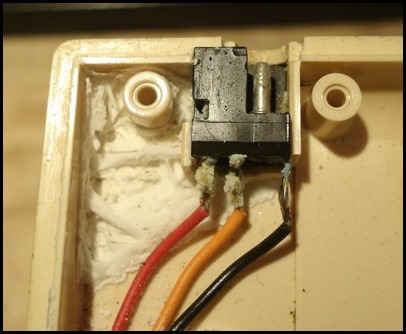

DSC03778
Crusty power jack.

DSC03779
I don’t know what the wet/varnish looking deposits on the PC board are.

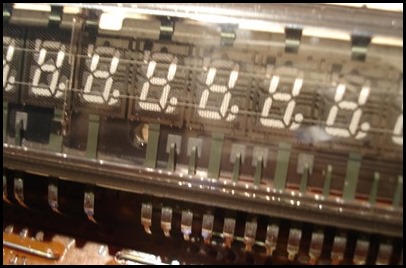

DSC03781
Close-up of the display.

DSC03783
More crust on the battery terminals. Vinegar cleaned it up.

DSC03784
So many screws holding the keypad PCB on.

DSC03785
The main IC, interestingly enough it’s a TI chip.

DSC03786
The board was held on with two rubber mounts.

DSC03787
PCB layout was such an artform back then.

DSC03789
Almost done with those screws.

DSC03790
Slider switches and rubber dome switches with carbon contacts.

DSC03794
That’s a thing of beauty.

DSC03796
Those damn contacts kept jumping off. I lost one and glued the other to the slider.

DSC03802
Keys. I’m really glad I took pictures of the thing before I inadvertently dumped all of the keys out of the housing.

DSC03806
A quick contact clean and de-crustifying and it works.


The refresh of the VFD is captured by the camera at different distances oddly.
